Some replacement parts ready to be painted

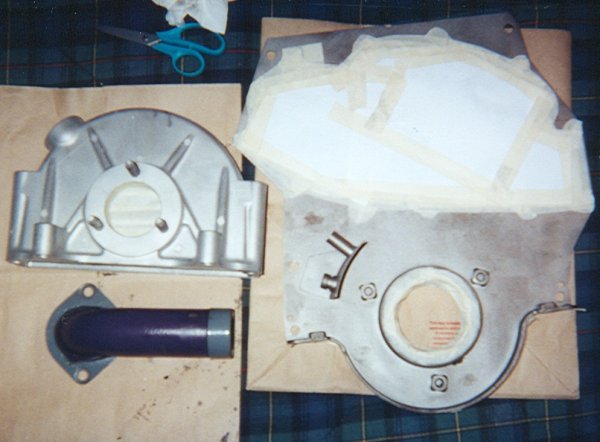

The replacement timing gear cover and injector pump drive gear cover. I opted to replace the injector pump drive gear cover with one that has a mount for a tachometer sensor, in case I decide to attempt to install a factory tach at some point. Both parts spent a lot of time in a parts washer (thanks again, Seth :) ); this is why they almost look brand-new. Both of these came off of a 6.9l that had an unknown amount of miles before suffering engine failure, and were in pretty bad shape when I removed them. Note that I have the part of the cover that the water pump and gasket mounts to taped off; this is so that paint won't get onto the gasket surface or into a place where it'll be immersed with coolant.
Special thanks again to Calvin (towcat) from TheDieselStop for giving me an opportunity to remove parts from the truck that I got these pieces from.

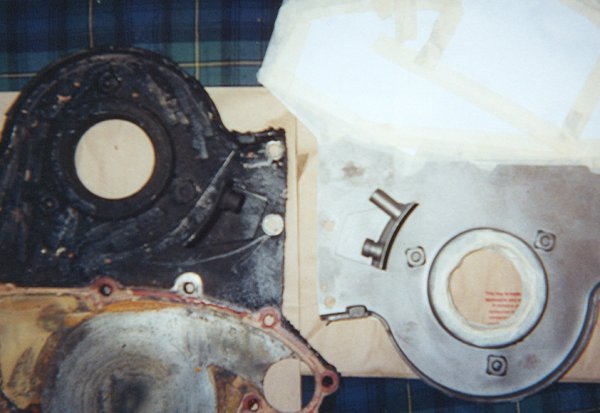

You can best see here the part of the timing gear cover that broke. To the right is the new timing gear cover; to the left is the timing gear cover that came off of my engine originally.
